Electric Trike Possibility of testing currently at the E-FATI Center in 2017 Boudry

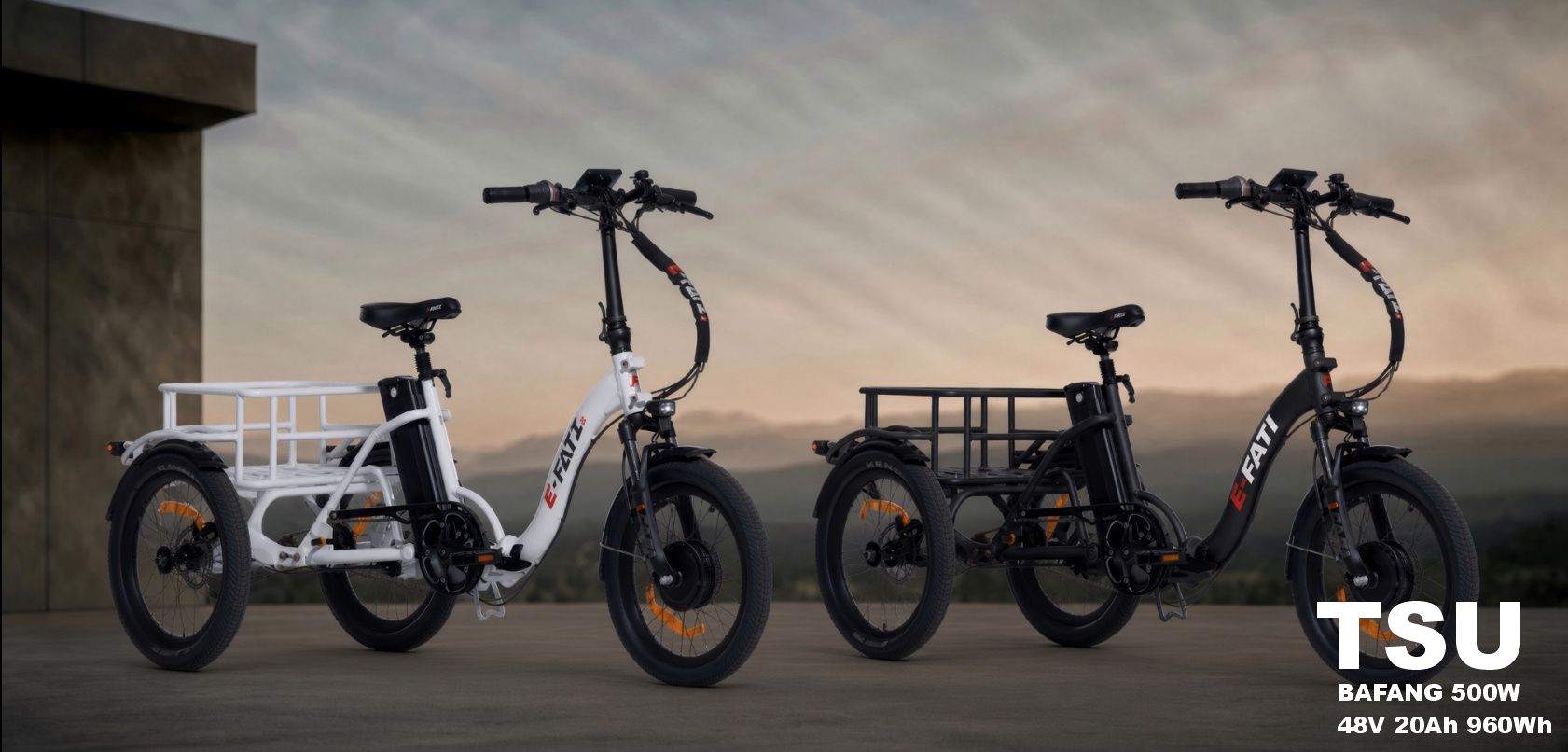

The E-FATI TSU Electric Trike is the perfect companion for your next adventure. This Electric Trike, small, compact and foldable, is particularly suitable for small people because it is maneuverable and easy to use. The front suspension and suspension seat post ensure optimal comfort on roads and trails. E-FATI TSU Practical for everyday use.
1. Ideal for shopping
2. Go on a ride without forgetting anything
3. Sport
4. Cycling with reassurance
5. Regain your autonomy to move around
The TSU Electric Trike is designed to provide you with maximum comfort at all times. The wheels equipped with 20" x 2.4 road profile tires allow you to roll easily on any urban road and trails. Foldable. To facilitate transport.
All E-FATI tricycles are standard equipped with:
3 hydraulic disc brakes
A telescopic fork
Spring saddle stem
Change gears even when stationary thanks to an easy-to-use twist grip No chain derailment with the 7-speed internal hub
The differential on the rear axle
Headlight and taillights turn on automatically
Two brake lights
5 levels of electrical assistance
BAFANG 500W
Available colors
White
We advise you to try the E-FATI tricycle before ordering it.
The adult Electric Trike is like cycling, you can't forget it, but like cycling, you have to learn first.
It will be necessary before walking on the small path, to carry out a few small adult tricycle learning sessions.
To do so, here are our tips!
First of all, you have to keep in mind that your Electric Trike is perfectly stable on its wheels at low speed, so you can get on and off your tricycle without fear of tipping over and without having to put your foot down. So keep your feet on the pedals when you start and when you stop if you don't want the rear wheels rolling over them!
Inevitably, in operation, the Electric Trike will follow the shape of the road. If the road is on a slope, your Electric Trike will tend to go in the direction of the slope (you will have to compensate and lean with your body against the slope). Also, if one of the 2 rear wheels passes through a hole or over a bump, the tricycle will lean to one side or the other without putting you in danger, but the feeling, especially at first, may seem disconcerting.
A little advice: deflate the rear tire to 2 BAR
This is why it is essential to learn to ride a tricycle and to do it in good conditions, on clear, level ground, without holes, bumps or obstacles.
Keep the following information in mind:
– Keep the brakes locked (parking position) to get on or off the Electric Trike
– If you have an electric tricycle, first learn how to use it without assistance
– When driving, look at the horizon and not at the front wheel.
– Take turns slowly and do not turn the handlebars suddenly
– Do not lean to turn but remember to turn the handlebars in the desired direction
– Learn at very low speeds to assimilate operation more easily
– Stay away from the limits of the roadway and obstacles (rear wheel clearance 76cm)
– To turn left, bend the left arm and push with the right arm and vice versa on the right
– Smooth driving, steering and brakes are quite responsive
– Do not tense up, remain flexible and relaxed
– Make small learning sessions, there is no point in insisting too long at the beginning
So much for the advice, now it's up to you!
Power (max) 500W
Torque (max) 45Nm
Samsung Li-Ion Lithium Battery
Battery Capacity 48V 20 Ah / (960Wh) 25-60+* km / Charging time 7h
Intelligent Charger 3A Charge Time 6h
Maximum speed at pedaling 25 Km / h
Accelerator handle yes
LCD display 5 levels of assistance
Front LED lighting with stop lights
Frame material Aluminum 6061
Suspension Aluminum fork
Front Tire 20"x 2.4
Rear Tires 20"x 2.4
Mudguards Yes
Rear Basket Max 25 kilos
Front Basket 10 kilos
2 Rear Disc Brakes 160mm hydraulique
Front Disc Brake 180mm hydraulique
Shimano Inter 7 speed transmission
Differential
Sprocket front 44 teeth
Weight net:33 Kg
Weight brut:38 Kg
Dimensions E-fati T
Height 110cm Width 73cm Length 188cm
Folded Height 70cm Width 90cm Length 120cm
Rear Basket Size 450*370*200mm
*Front Basket Size 330*283*132mm
Please ask your dealer for a detailed quote.
48V 20Ah 960wh / From CHF 3699.00 (TVA incl.)
IMPORTANT INFORMATION Due to the geometry of the frame, the seat post must be lower than the weld. See picture
All E-fati electric bicycles are Swiss compliant, which means that the pedaling assistance can not bring you to more than 25 km / h, to exceed this speed you will have to press the pedals! Unbridled E-fati is no longer under warranty (neither by the manufacturer nor by the store). Unbridging his electric bike will invalidate the homologation of it, and totally forbidden on public roads.
You can discover E-FATI e-bikes at our authorized dealers. They will make every effort to accompany you in your choice and bring you the best service.
Foldable Power and comfort | Services and warranty Switzerland | Assembly control in Switzerland | Swiss Brand | Price |
All our E-FATI are equipped with Full Option: Thumb accelerator, LCD screen, Front and rear LED lights with brake light, Bafang engine 500W, Samsung battery , hydraulic disc brakes, luggage rack, spring and foldable seat post, telescopic fork,Chain guard , fenders, as well as a very reliable Shimano derailleur.
Brake lever with parking brake | Differential | Hydraulic disc brakes | Shimano INTER 7 gear | Battery 48V 20Ah 960wh |
